Integrated Innovation
The i1 is the ultimate in-wall solution for your high-end needs: It seamlessly blends into your wall and is perfect for both private and commercial spaces.
Hearing is believing
The almost invisible i1 features the unique Manger sound transducer - wrapped in a clever box that was designed for in-wall installations in concrete- or brick walls. High-end materials and thorough research make this box special in audio quality and handling, allowing for a quick and easy setup and comes equipped with everything you need during the setup process.

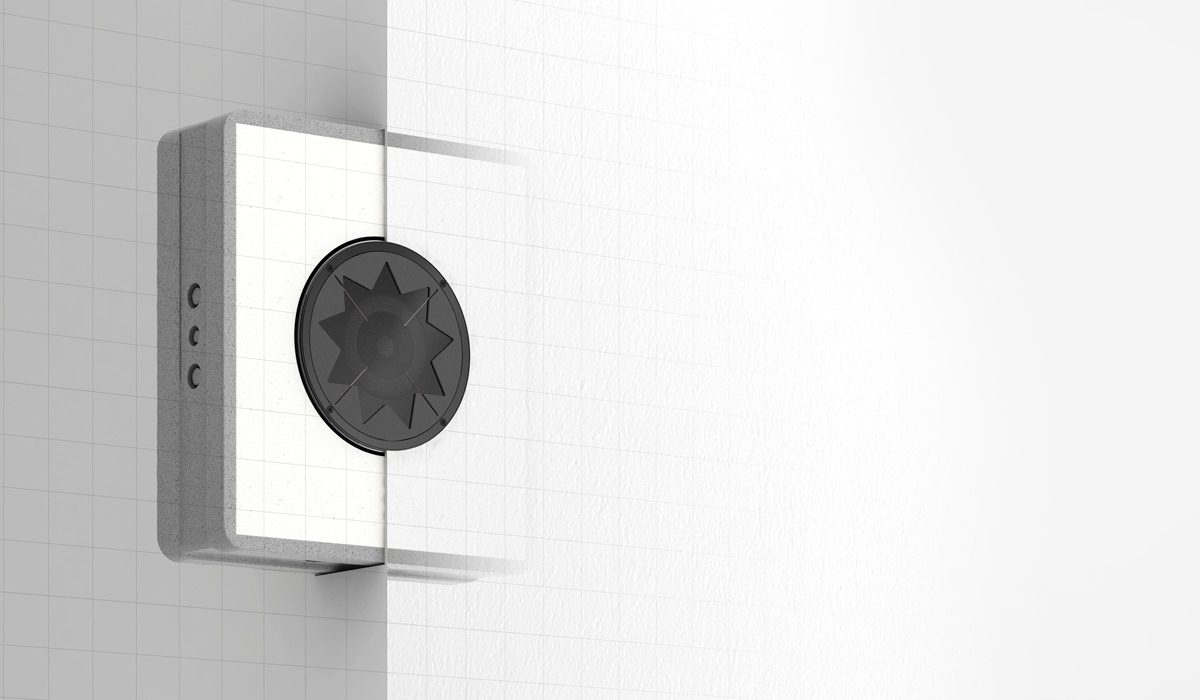

Versatile setup - completely hidden
The i1 can be used as a stereo system, but also gives you the possibilites to turn it into multi-channel for your home theatre desires while perfectly retaining your living room qualities.

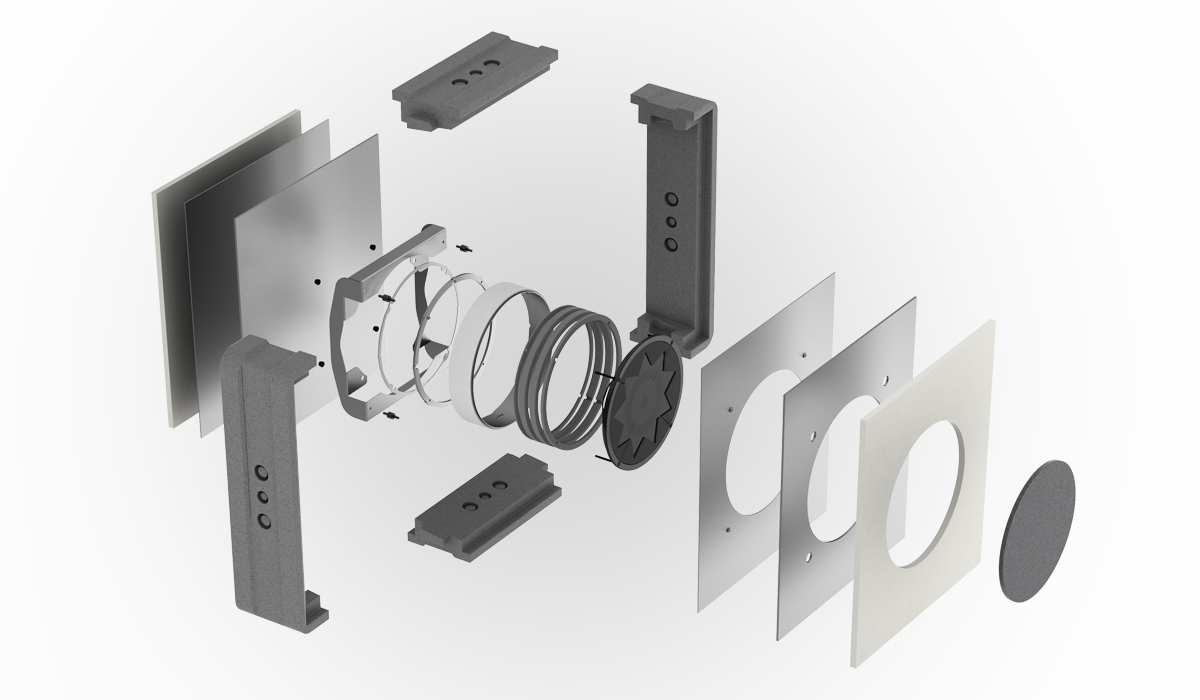

A clever and unique mechanism inside the box allows you to adjust the driver, creating a fully flush surface with your wall finish.
Cover it up

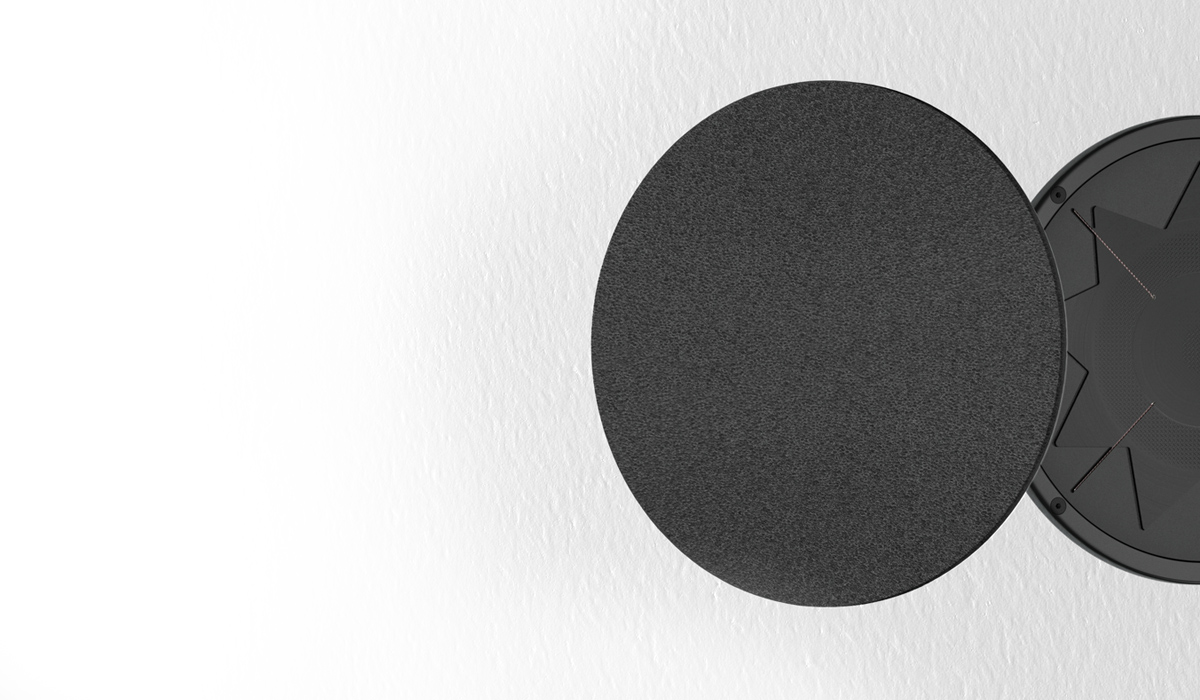

With the i1 you now have the choice to completely hide your speaker and attach a foam cover that is available in white, black, silver and anthracite. You simply stick the cover on the speaker and it will neatly stay in place thanks to a hidden magnetic system.
Foam cover color options:
Impressions
Technical
| Type | Passive 1-way in-wall speaker |
| Impedance | 8 Ohms |
| Frequency range | 120 Hz - 40 kHz |
| Crossover frequency | 120 Hz (optional without crossover) |
| Sensitivity | 89 dB (1 W/1 m) |
| Maximum SPL | 106 dB (116dB Peak) |
| Product external dimensions | 15.4 × 17.1 × 4.7 " (390 × 435 × 120 mm) |
| Fullrange | Manger ® Sound Transducer – 8 “ (210 mm) |
| Recommended power handling | 10 - 200 watts |
| Cabinet | EPS (high bulk density) and Gypsum fibre/metal sandwich construction (high sound reduction - SRI=59 dB) |
| Cut out dimensions | ø 8,7 “ (ø 221 mm) |
| Net weight | 25.7 lbs (11,7 kg) |
| Mounting depth from surface | 4,7 “ (120 mm) |
Downloads
-
Manger Brochure 2018
June 06, 2018
-
i1 Installationmanual
June 06, 2018
-
i1 Datasheet
June 06, 2018
