How Does the Manger Sound Transducer Work?

Manger Knowledge

A Different Principle

Most loudspeakers follow a principle that has remained unchanged for decades:
they move air in a piston-like motion.
The Manger sound transducer takes a different approach.
It is not based on piston motion, but on the propagation of bending waves across a specially designed diaphragm.
The difference is not in the details – but in the principle.

Designed from the Human Ear

The starting point was not loudspeaker engineering, but a fundamental question:

How does human hearing work?

What matters is not primarily pitch – but the temporal structure of a sound event.

“We have overcome transient distortions. What you hear is only the music.”

The ear detects sound sources through minute temporal pressure changes – within fractions of a millisecond.

This is precisely what the Manger transducer reproduces.

Time Before Frequency

In conventional audio engineering, the focus is often placed on frequency response.

For human perception, however, hearing begins differently:
with time – not with frequency.

The very beginning of a sound event already contains essential information:

• direction of the sound source
• spatial structure
• character of the sound

Only afterwards does pitch perception occur.

If this temporal sequence is not reproduced accurately, the sound loses its naturalness and precision.

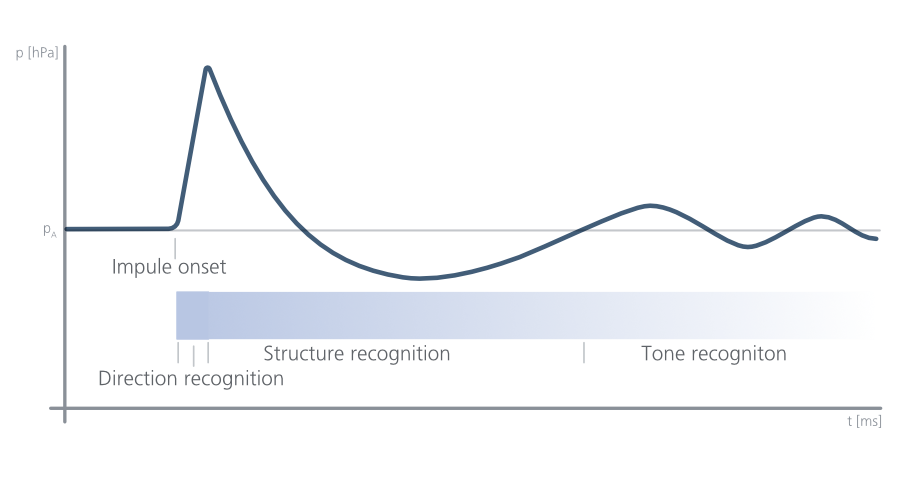

Figure 1
How the Human Auditory System Processed Sound

The human auditory system processes sound in a temporal sequence: first the spatial and structural information – and only afterwards pitch.

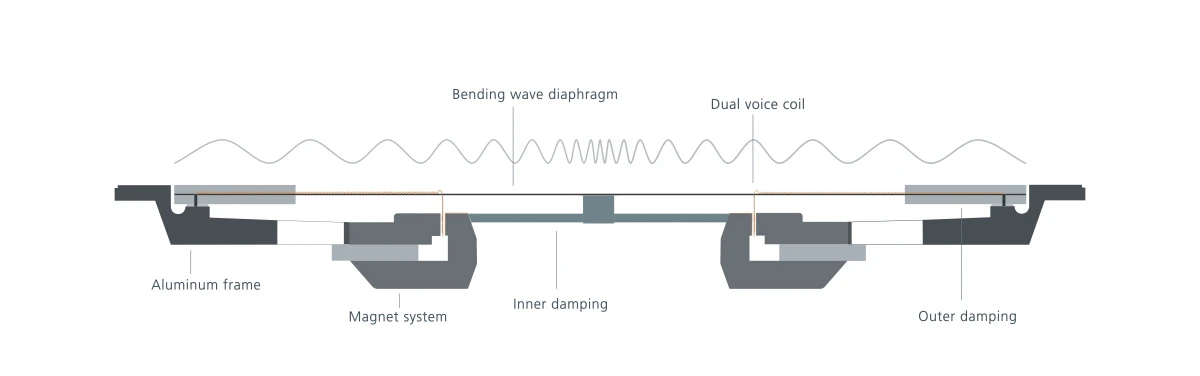

The Principle of Bending Waves

In the Manger transducer, the diaphragm does not move as a rigid body.

Instead, bending waves propagate outward from the center.

The diaphragm is designed so that its properties change radially:

• Low frequencies use the entire surface
• Higher frequencies increasingly originate from the center

The result is a coherent sound image – without transitions between different drivers.

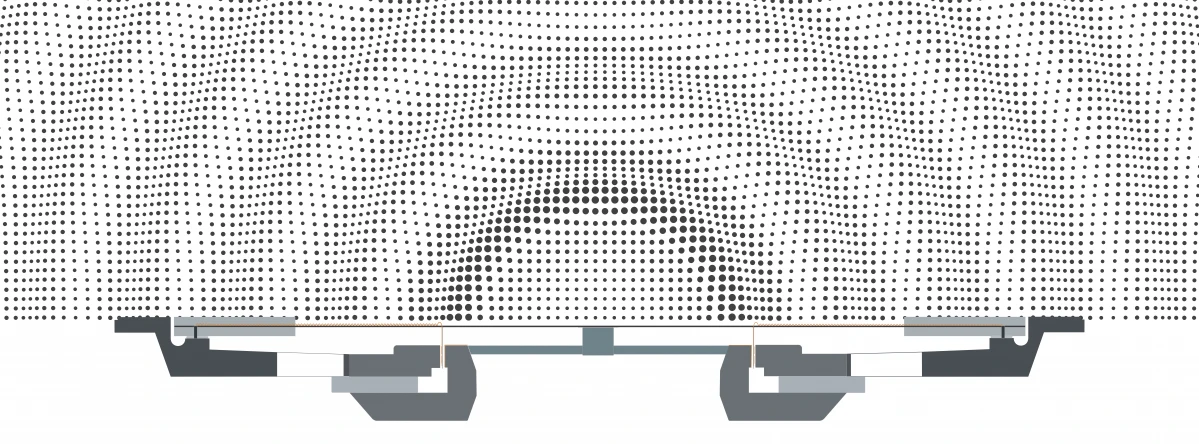

The Manger diaphragm operates through radial bending waves – not piston motion.

A Structural Issue in Conventional Loudspeakers

Conventional loudspeakers use multiple drivers, each covering a specific frequency range.

This division is not a detail – it is a structural issue.

It inevitably leads to:

• time offsets
• phase inconsistencies
• incoherent reproduction

The Manger transducer minimizes these transitions.

A single driver reproduces an exceptionally wide frequency range – coherently and seamlessly.

Precision in Time

Many loudspeakers deviate from the original signal – not in frequency response, but in time behavior.

Many loudspeakers do not only reproduce music – they produce their own sound.

The Manger transducer addresses this directly:
Signals are reproduced with precise temporal accuracy –
without ringing, without overlap.

The Result

The result is not an effect.

It is a form of reproduction in which:

• voices remain stable in space
• instruments retain their structure
• spatial information becomes clear

The loudspeaker itself disappears.

A Difference in Principle

This difference cannot be reduced to individual parameters.

It lies in the approach.

And that is why it is audible.
