Compact Powerhouse
Experience the full scope of Manger audio quality with our newest passive compact system.
Small only in size
If you prefer to place your speaker on a sideboard or stands than your model is the z1. The physical necessities of two 8 inch drivers and our pursuit to reach a precise and dry bass response has lead us to a compact speaker that is actually a big compact system. You will be surprised how big this small speaker will sound.
Maximum performance, superior body
The visual and acoustical timelessness of this model will satisfy you for decades, especially since you get to choose your individual finish.
Your individual high end finish
You have full control over the way the z1 looks and fits into your personal environment. Whether you want it dark, light, white or fancy a special tone: we'll be happy to receive your wish and produce your personal and individual z1 for you.

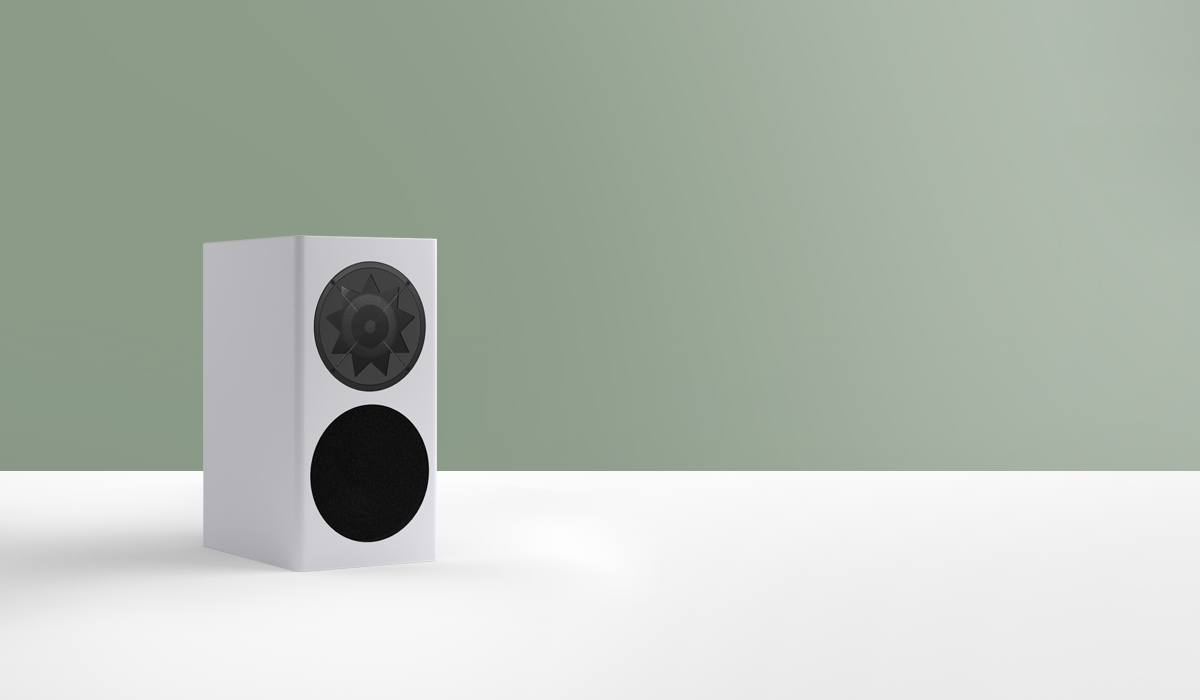

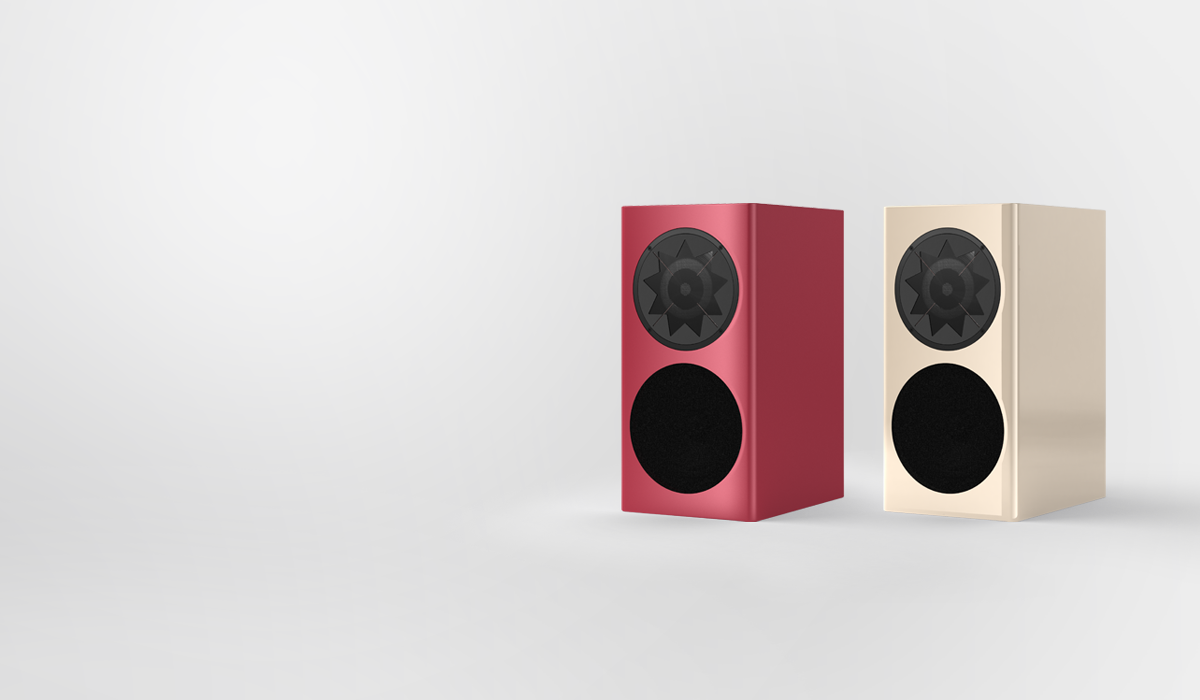

Color options
We offer all finishes in satin and high end gloss as per RAL or NCS color chart. You can also choose from a broad selection of finest veneers to match your personal taste. Below is a brief selection:

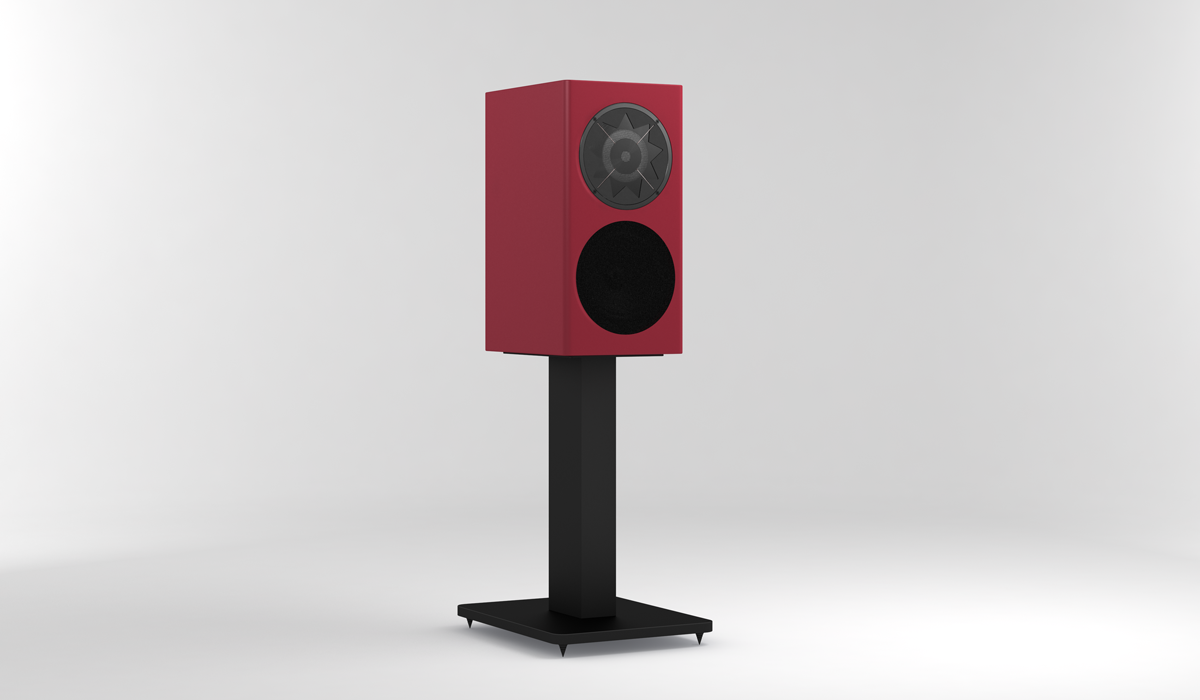

z1 stand
A dedicated stand with an optimum height
for the z1. It rest on a solid top plate.
The massive footplate can be used with
spikes or decoupling devices. The glassplasted
Aluminum surface is available in silver or black
anodised finish.
Plays perfectly with Devialet and Linn
To bring powerful technology to your passive Manger speaker, the Manger z1 seamlessly works with both Linn’s Exakt and Devialet’s SAM Processing. In combination with Exakt, your passive speaker is enhanced with powerful software and performance features, becoming an upgradeable, intelligent speaker.
That's High Fidelity.
LP magazin
May 2015
Spectacularly natural
AUDIO
Nov 2014
emotional music reproduction
i-fidelity.net
Dec 2014
Impressions
Technical
| Type | Passive 2-Way Compact Speaker |
| Impedance | 4 Ohms |
| Frequency Range | 40 Hz – 40 kHz |
| Crossover Frequency | 360 Hz |
| Sensitivity | 89 dB 1 W/1 m |
| Max SPL | 106 dB Peak |
| Dimensions | 21.0” x 10.6” x 14.3” (534 x 270 x 364 mm) |
| Weight | 57.3 lbs (26 kg) |
| High + Mid | Manger® Sound Transducer |
| Bass | 8” (200 mm) Custom made Carbon Fiber-Paper Sandwich Design, 42mm Voice coil ø |
| Enclosure | closed |
| Rec. power | 50 – 200 W |

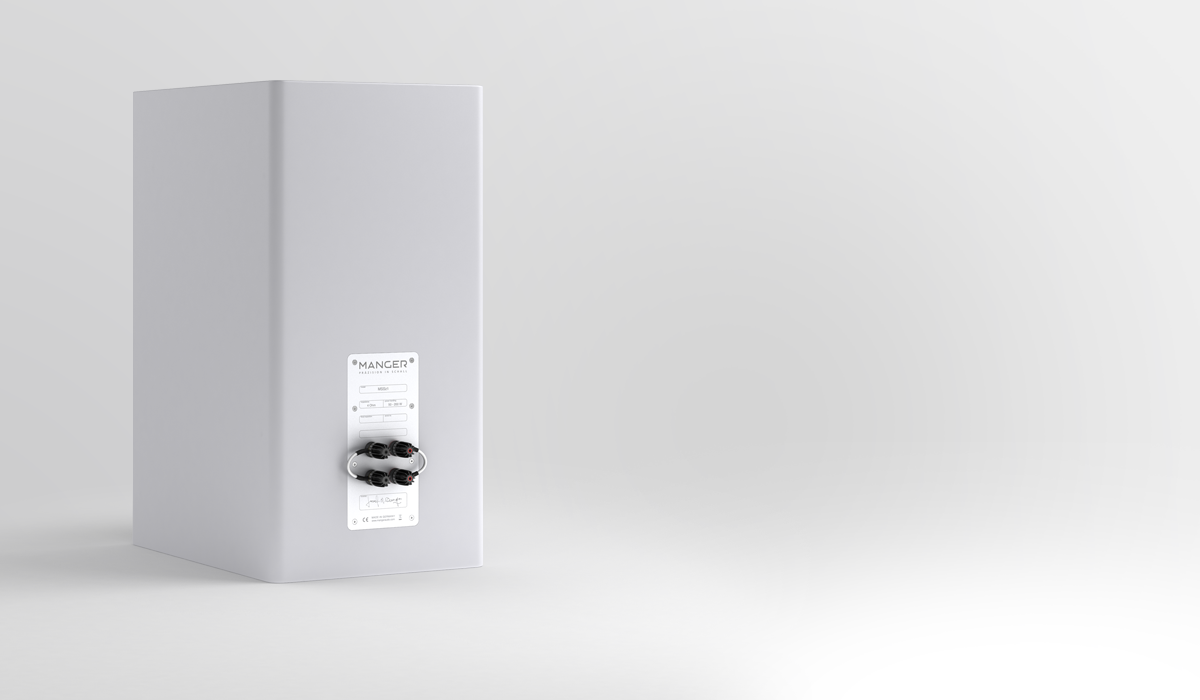

| Connectors | Bi-Wiring – WBT plasmaprotect nextgenTM Cu |
| Finish | customized - all RAL and NCS colors, veneer or UltraHigh Gloss |
| z1 stand | Height: 524mm - Footplate: 0.78" x 14.1" x 18.3" (20 x 358 x 465mm), Finish: Aluminum anodised silver or black |
| Devialet - SAM® Processing | available |
| LINN Space Optimisation | listed in LINN database |
| LINN Exakt Filter | listed - ask us for LINN database access |
Downloads
-
Manger Brochure 2018
May, 2018
-
Inner-Magazine (FIN) - review z1
August, 2017
-
LP Magazin - review z1
May, 2015
-
z1 datasheet
February, 2015
-
Hifi Choice (PL) - review z1
January, 2015
-
i-Fidelity - review z1
December, 2014
-
AUDIO - review z1
November, 2014
Experience Manger
The best way to get goosebumps is to experience a Manger system. We offer various ways:
