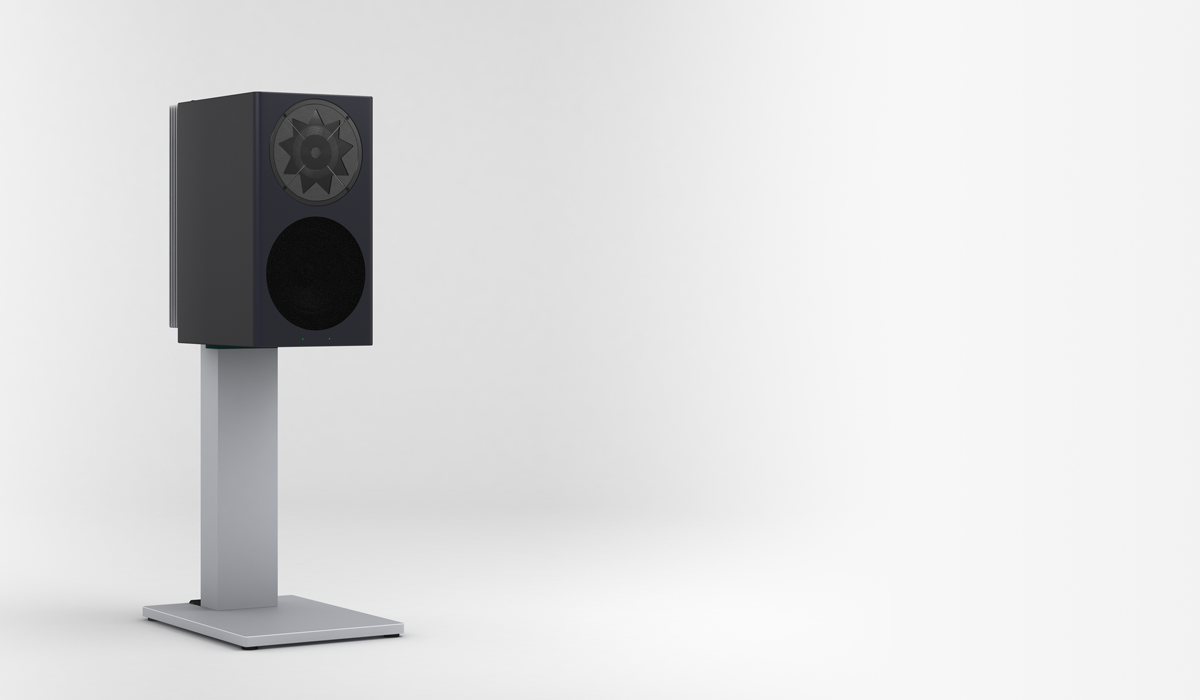

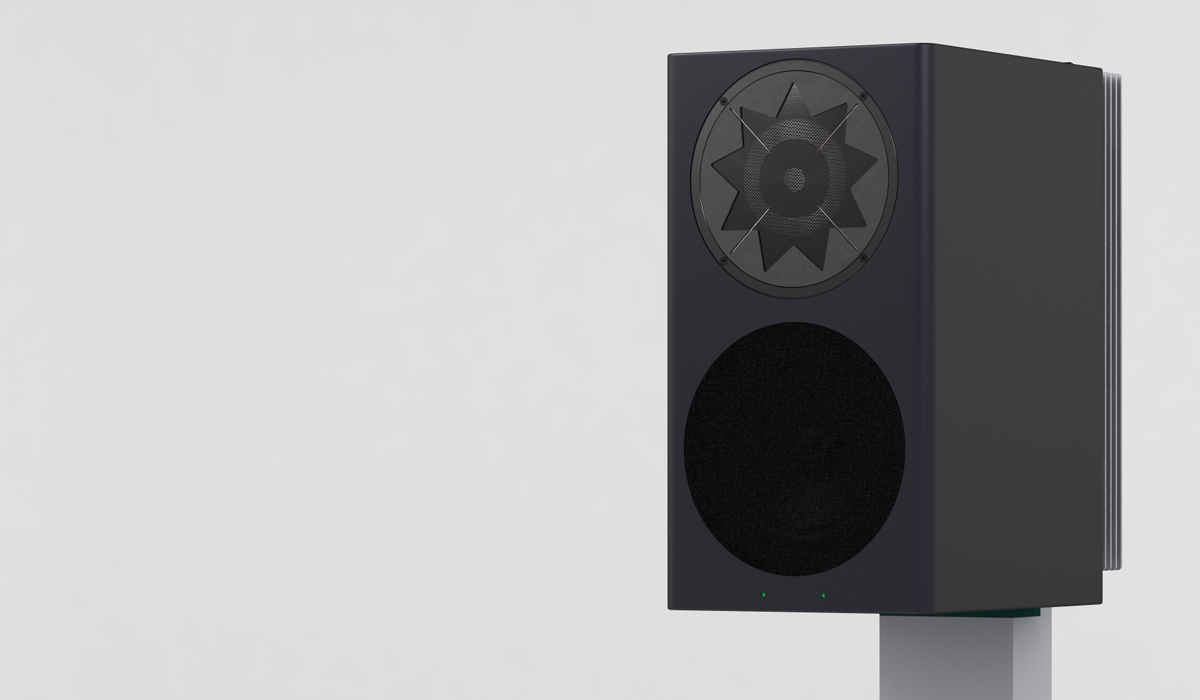

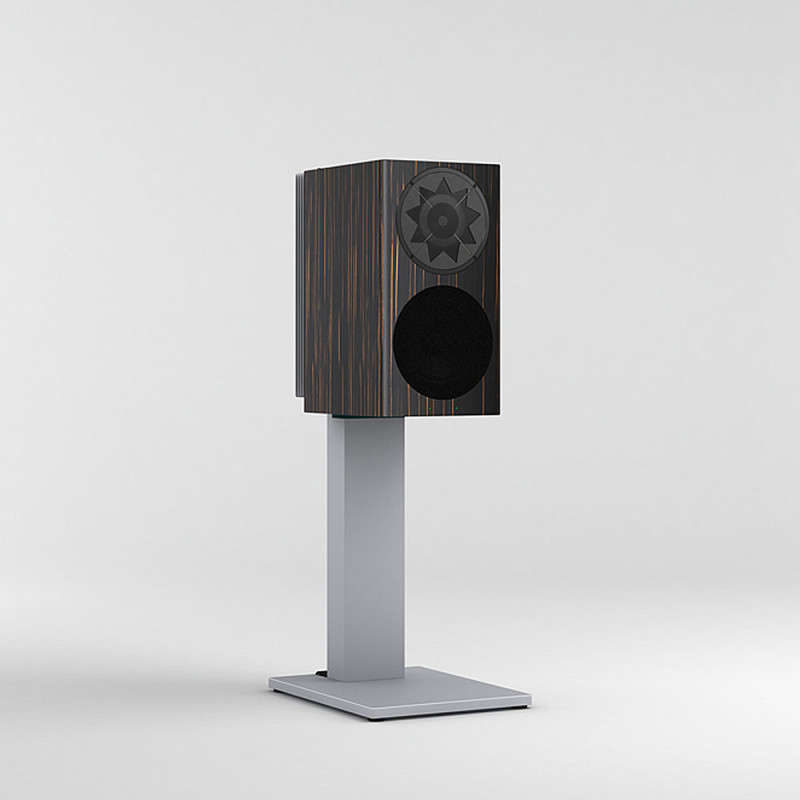

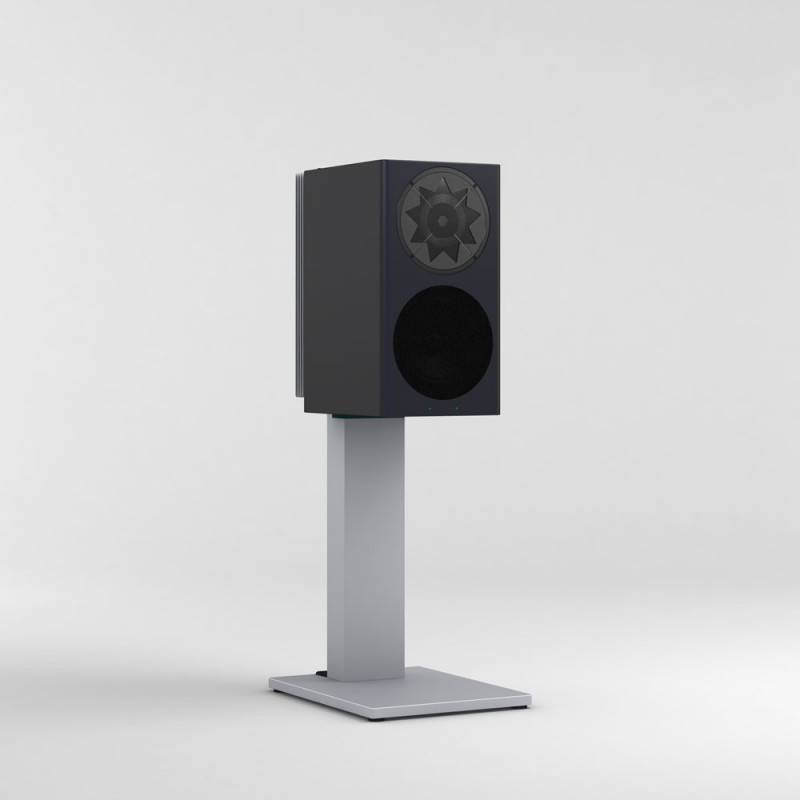

The acoustic lens

The awarded active studio monitor is driven by unrivaled
power and precision demanded by pro audio engineers.

Empowers you to perfection

A fast sound transducer, the corresponding power amplifiers and a bass unit for effortless reproduction of even the lowest octaves are just some of the outstanding features of the c1.

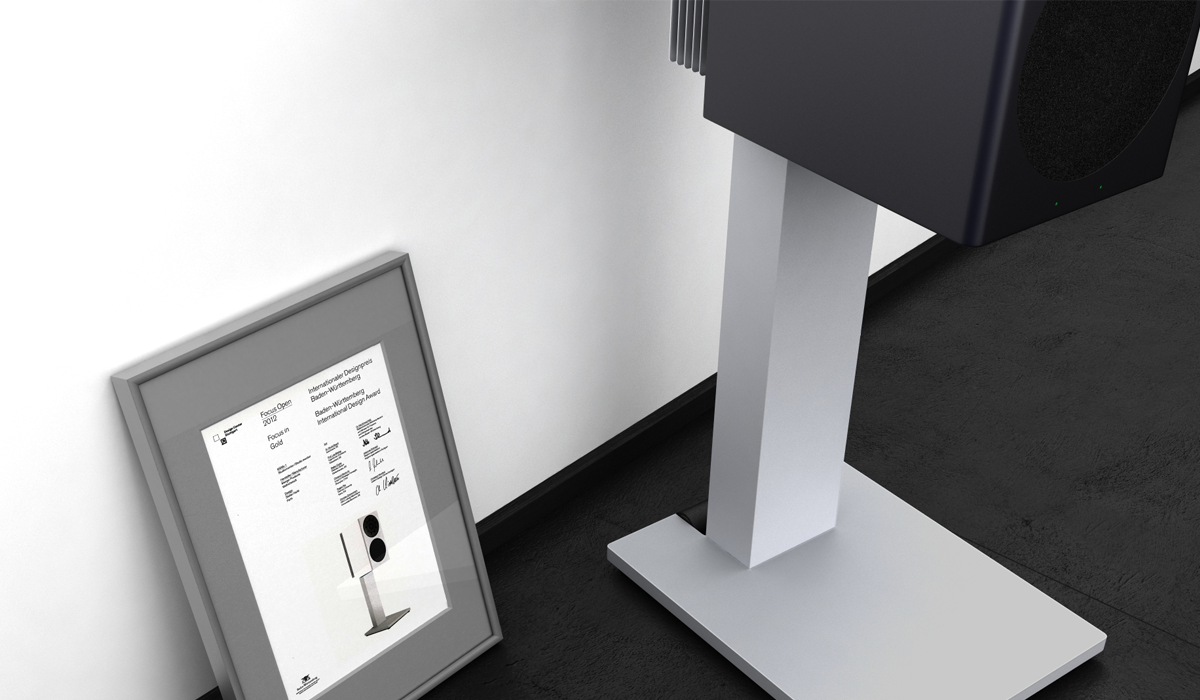

Awarded design

The c1 takes gold at the famous international design award
Focus Open Gold 2012.
Design: Stefan Harlé, Nuremberg

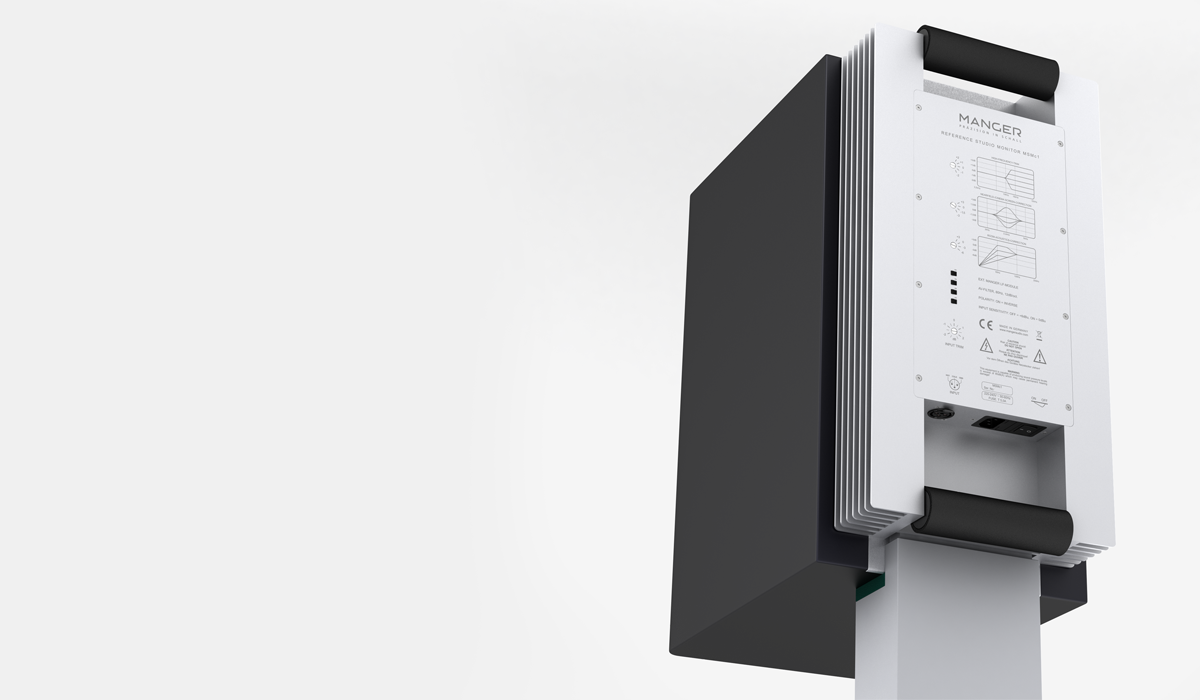

Designed to perfom in every situation

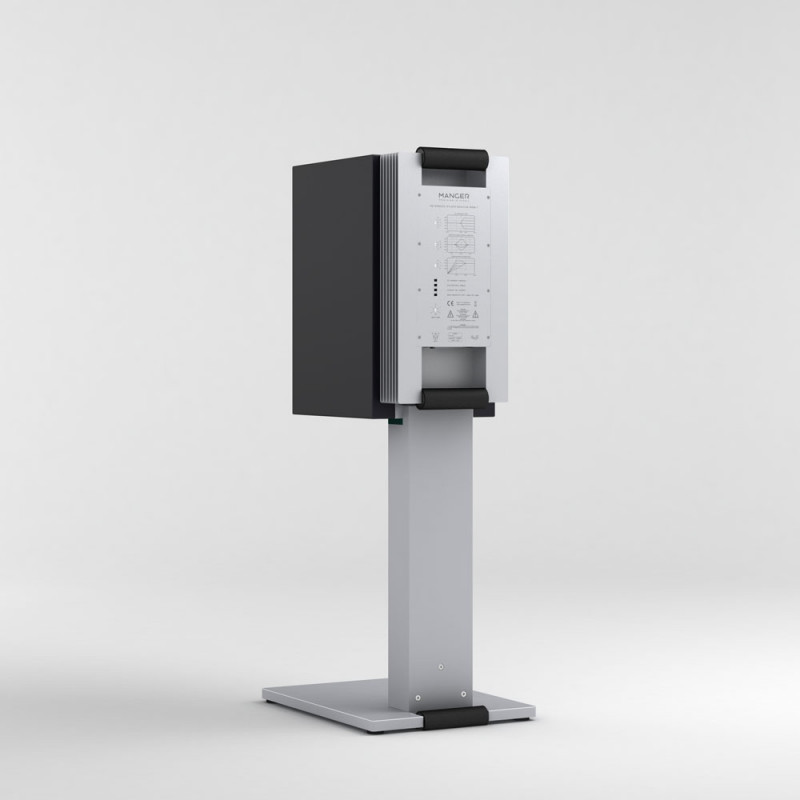

Other features aren't standard either: firm handles for transporting this 30 kilogram heavyweight, a perfect matching and movable stand that is available in different heights, a dockable bass unit as an optional extra, a self-explanatory operating console with a clear layout and finally an attractive design that is still mindful of the needs of the user.

The studio workhorse

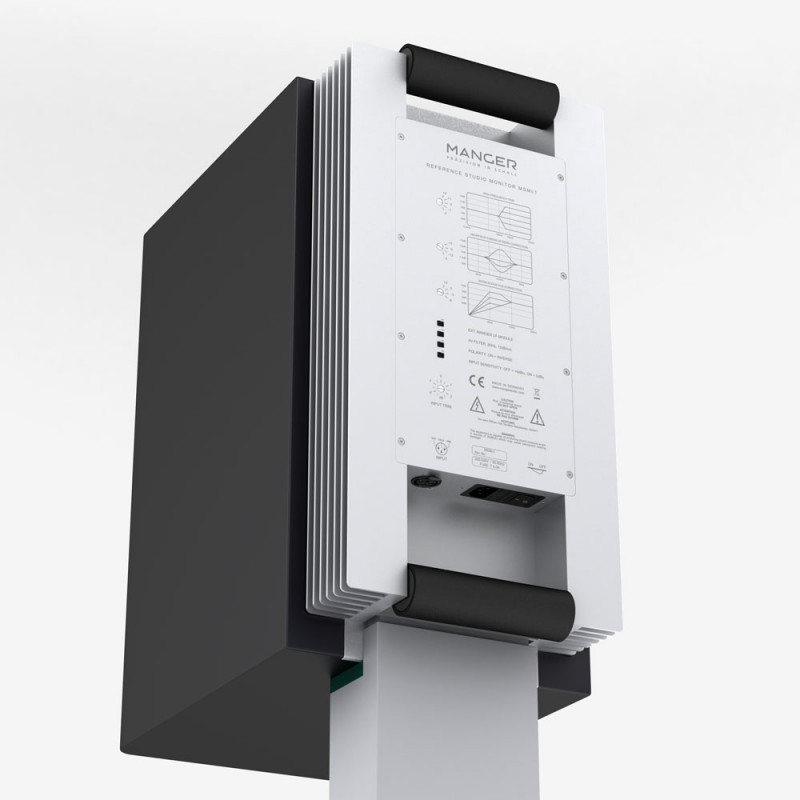

We have thought of various adjustment features to make a sound engineer's life that much easier. These include room adaptation filters, near-field/cinema-screen EQ settings, and an input trimming stage controller that can precisely set the two-channel or multi-channel equality to within a tenth of a decibel.

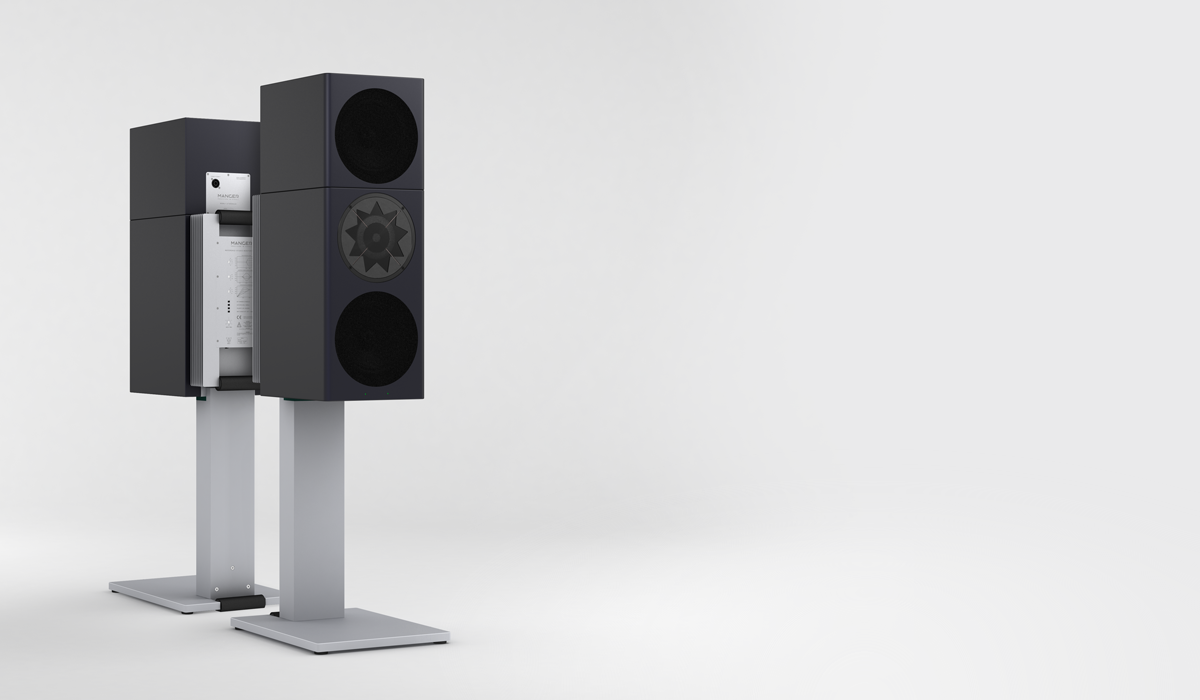

Lows taken to new heights

The c1 LF-Module is an additional passive woofer module that allows an increase of a 6dB higher max SPL.

Dimensions: (H x W x D) 264 x 270x 343 mm
Weight: 11 kg

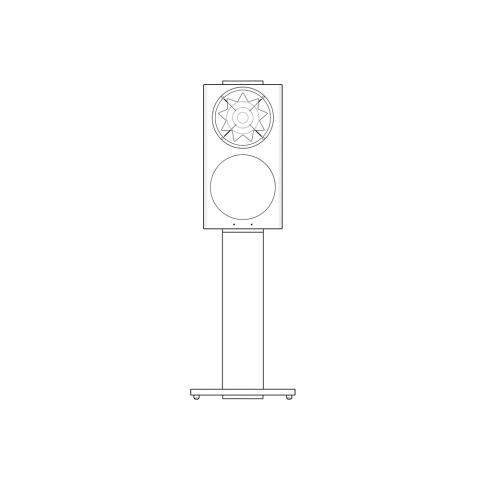

Take a stand

We have designed an elegant yet robust stand featuring special decoupling materials at a standard height of 612mm with a beautiful aluminum silver anodized finish. We are happy to deliver custom heights upon your request.

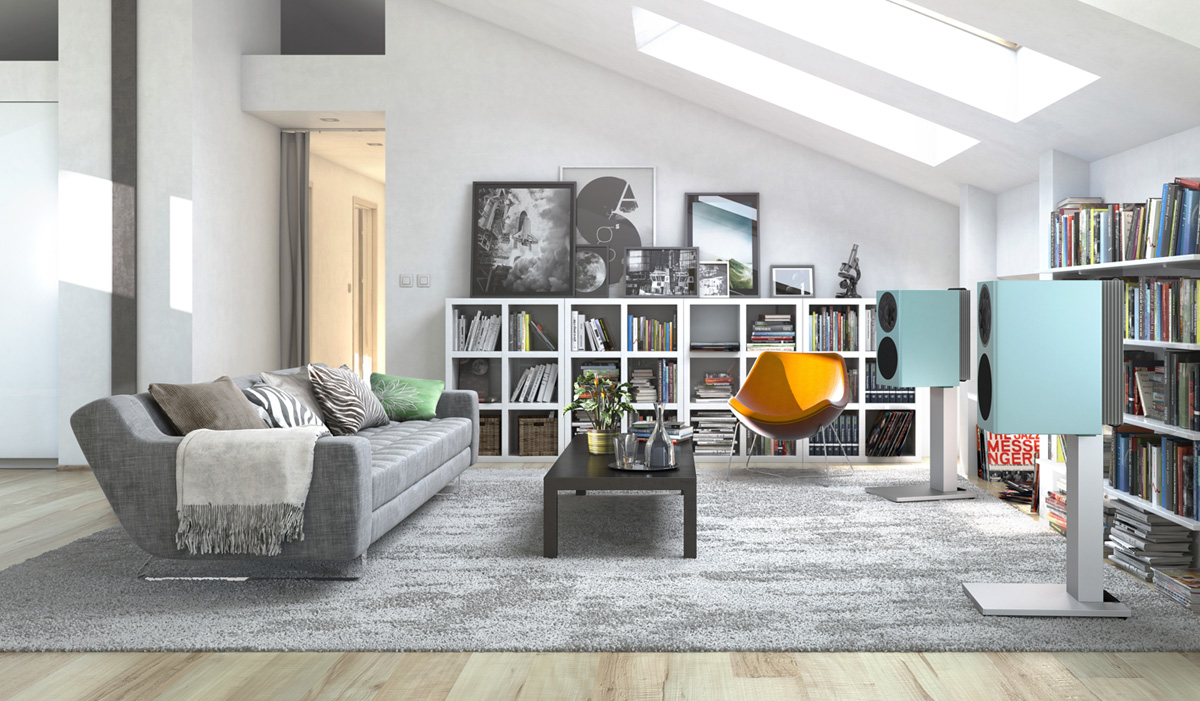

Your individual high end finish

You have full control over the way the c1 looks and fits into your personal environment. Whether you want it dark, light, white or fancy a special tone: we'll be happy to receive your wish and produce your personal and individual c1 for you.

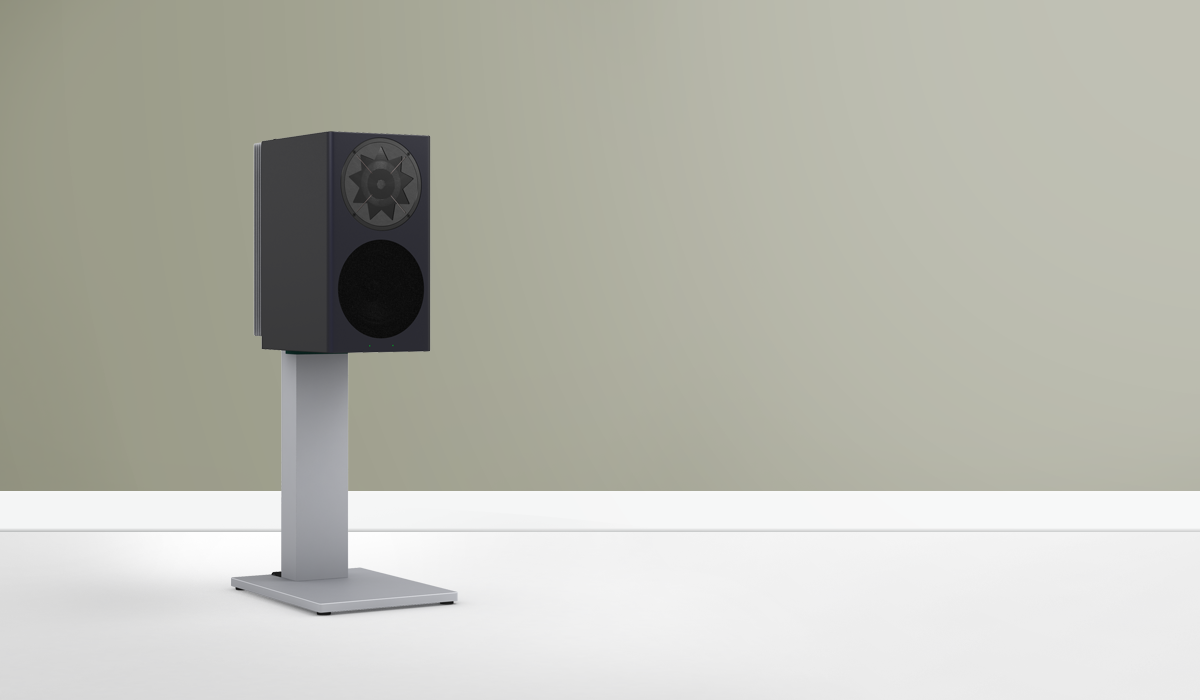

Color options

We offer finishes in matte and high end gloss as per RAL or Nextel. You can also choose from a broad selection of finest veneers to match your personal taste.

Exceptional time-domain performance

SOS
April 2017

Exceptional time-domain performance

SOS
April 2017

Great sense of clarity

SOS
April 2017

Gorgeous!

HifiStars
June-August 2009

Product of the Year

HI FI review
2011

Superb Timing

STEREO
Nov 2010

A dream comes true.

Hifistars
June - Aug 2009

Purest obsession

HifiStars
June-August 2009

First Class Fascination

HifiStars
June-August 2009

Complexity with
amazing natural
presentation

HifiStars
June-August 2009

That’s live!

HifiStars
June-August 2009

FocusOpen Design Award 2012

International Design Award Baden-Wuerttemberg
2012

Plasticity and Authenticy are phenomenal

Einsnull
02/2011

The perfect wave!

Einsnull
02/2011

Highly addictive!

studiomagazin
Nov 2011

Product of the Year

HIFI review
2011

Absolutely top-class!

professional audio
Feb 2009

Technical

Type Active 2-Way System
Frequency range 30 Hz - 40 kHz
Crossover frequency 330 Hz
Max. SPL 110 dB Peak
Dimensions 19.5”x10.6”x16.7” (495 x 270 x 424 mm)
Weight 66.1 lbs (30 kg)
HF Manger Sound Transducer, Bandwidth 80 Hz – 40 kHz, Rise Time 13µs
LF 200 mm Glass Fiber-Polyester Sandwich Design, 38mm Voice Coil Diameter
Enclosure closed
Max. Power Output LF 250 W @ 8 Ohms Class AB
Max. Power Output HF 180 W @ 8 Ohms Class AB
Power Bandwidth HF 250 kHz (-3 dB)
Input Sensitivity 6 dBu (1.55 V) or 0 dBu
Input Impedance 10 kOhms
Input XLR-3 (balanced)
Input Trim Switch 11 Positions (-2.5 dB to 2.5 dB)
Input Sensitivity Switch 6 dBu, 0 dBu
AV Filter Hi-pass Filter (80 Hz, 12 dB)
LF Module Switch LF -6 dB
Room Acoustics Correction Switch Hi-pass at 100 Hz (+3 dB, 0 dB, -3 dB, -6 dB)
Nearfield /Cinema Screen Correction Switch peaking at 3.25 kHz, 1.0 oct. (+3 dB, 0 dB, -1.5 dB, -3 dB)
High Frequency Trim Switch Shelving Filter at 10 kHz (+2 dB, +1 dB, 0 dB, -1 dB, -2 dB)
Power LED green
Limiter LED green/red
Finish silk matt as per RAL, Nextel, veneer or UltraHigh Gloss
